charts

Beautiful visualizations for categorical land cover data: static (matplotlib) and interactive (plotly).

markdown## Default Color Palette

A colorblind-friendly palette based on ColorBrewer, used when no layer palette or custom colors are provided.

Data Preparation

Helper functions to transform extraction results into chart-ready formats.

---

source

prepare_chart_data

def prepare_chart_data(
    df:DataFrame, value_col:str='area_ha', as_percentage:bool=False
)->DataFrame:

Pivot extraction data for charting.

Args: df: DataFrame from extract_categorical with columns: site_id, year, class_value, count, area_ha, class_name value_col: Column to use for values (‘area_ha’ or ‘count’) as_percentage: If True, convert to percentages per year

Returns: Pivoted DataFrame with years as index, classes as columns

---

source

get_class_colors

def get_class_colors(
    classes:list, custom_colors:Optional=None, layer:Optional=None
)->dict:

Get colors for each class, using layer palette, custom, or defaults.

Priority order: 1. custom_colors (if provided) 2. layer.palette (if layer provided and has palette) 3. DEFAULT_PALETTE cycle

Args: classes: List of class names custom_colors: Optional dict mapping class names to hex colors layer: Optional CategoricalLayer with palette attribute

Returns: Dict mapping class names to colors

Static Charts (Matplotlib)

Publication-ready static visualizations.

---

source

plot_class_distribution

def plot_class_distribution(
    df:DataFrame, title:str='Class Distribution Over Time (%)', colors:Optional=None, layer:Optional=None,
    figsize:tuple=(12, 6), marker:str='o', linewidth:float=2, markersize:float=6, grid:bool=True,
    legend_loc:str='center left', legend_bbox:tuple=(1.02, 0.5)
)->tuple:

Create a line chart showing class distribution percentages over time.

Args: df: DataFrame from extract_categorical title: Chart title colors: Optional dict mapping class names to hex colors layer: Optional CategoricalLayer to extract colors from palette figsize: Figure size (width, height) marker: Marker style for data points linewidth: Width of lines markersize: Size of markers grid: Whether to show grid legend_loc: Legend location legend_bbox: Legend bbox_to_anchor

Returns: Tuple of (figure, axes)

---

source

plot_class_area_stacked

def plot_class_area_stacked(
    df:DataFrame, title:str='Area by Class Over Time (hectares)', colors:Optional=None, layer:Optional=None,
    figsize:tuple=(12, 6), bar_width:float=0.7, grid:bool=True, legend_loc:str='center left',
    legend_bbox:tuple=(1.02, 0.5)
)->tuple:

Create a stacked bar chart showing area by class over time.

Args: df: DataFrame from extract_categorical title: Chart title colors: Optional dict mapping class names to hex colors layer: Optional CategoricalLayer to extract colors from palette figsize: Figure size (width, height) bar_width: Width of bars grid: Whether to show grid legend_loc: Legend location legend_bbox: Legend bbox_to_anchor

Returns: Tuple of (figure, axes)

Interactive Charts (Plotly)

Interactive visualizations with hover info, zoom, and pan.

---

source

plot_class_distribution_interactive

def plot_class_distribution_interactive(
    df:DataFrame, title:str='Class Distribution Over Time (%)', colors:Optional=None, layer:Optional=None,
    height:int=500, width:Optional=None, line_width:float=2, marker_size:float=8
)->go.Figure:

Create an interactive line chart showing class distribution percentages.

Args: df: DataFrame from extract_categorical title: Chart title colors: Optional dict mapping class names to hex colors layer: Optional CategoricalLayer to extract colors from palette height: Chart height in pixels width: Chart width in pixels (None for auto) line_width: Width of lines marker_size: Size of markers

Returns: Plotly Figure object

---

source

plot_class_area_stacked_interactive

def plot_class_area_stacked_interactive(
    df:DataFrame, title:str='Area by Class Over Time (hectares)', colors:Optional=None, layer:Optional=None,
    height:int=500, width:Optional=None
)->go.Figure:

Create an interactive stacked bar chart showing area by class.

Args: df: DataFrame from extract_categorical title: Chart title colors: Optional dict mapping class names to hex colors layer: Optional CategoricalLayer to extract colors from palette height: Chart height in pixels width: Chart width in pixels (None for auto)

Returns: Plotly Figure object

Convenience Functions

High-level functions for common use cases.

---

source

plot_extraction

def plot_extraction(
    df:DataFrame, chart_type:str='distribution', interactive:bool=False, layer:Optional=None, kwargs:VAR_KEYWORD
):

Universal plotting function for extraction results.

Args: df: DataFrame from extract_categorical chart_type: ‘distribution’ (line %) or ‘area’ (stacked bar) interactive: If True, use plotly; if False, use matplotlib layer: Optional CategoricalLayer to extract colors from palette **kwargs: Additional arguments passed to the underlying plot function

Returns: Figure object (matplotlib or plotly)

Aggregated Class Charts

Sometimes multiple classes represent components of the same concept. For example, “Secondary Vegetation” + “Secondary Veg Regrowth” together represent total restoration progress.

The plot_aggregated function lets you define aggregates and visualize both components (dashed) and totals (solid).

---

source

plot_aggregated

def plot_aggregated(
    df:DataFrame, aggregates:dict, title:str='Aggregated Class Distribution', colors:Optional=None,
    layer:Optional=None, show_components:bool=True, vlines:Optional=None, vline_color:str='#666666',
    figsize:tuple=(12, 6), linewidth:float=2, marker:str='o', markersize:float=6, grid:bool=True,
    legend_loc:str='center left', legend_bbox:tuple=(1.02, 0.5)
)->tuple:

Plot aggregated classes with components shown as dashed lines.

Args: df: DataFrame from extract_categorical aggregates: Dict mapping aggregate name to list of component class names. Example: {‘total_restoration’: [‘Secondary Vegetation’, ‘Secondary Veg Regrowth’]} title: Chart title colors: Optional dict mapping class/aggregate names to hex colors layer: Optional CategoricalLayer to extract colors from palette show_components: If True, show component classes as dashed lines vlines: Optional dict mapping years to labels for vertical reference lines. Example: {2012: ‘Restoration Start’} vline_color: Color for vertical lines (default gray) figsize: Figure size (width, height) linewidth: Width of lines marker: Marker style markersize: Size of markers grid: Whether to show grid legend_loc: Legend location legend_bbox: Legend bbox_to_anchor

Returns: Tuple of (figure, axes)

---

source

plot_aggregated_interactive

def plot_aggregated_interactive(
    df:DataFrame, aggregates:dict, title:str='Aggregated Class Distribution', colors:Optional=None,
    layer:Optional=None, show_components:bool=True, vlines:Optional=None, vline_color:str='#666666', height:int=500,
    width:Optional=None, line_width:float=2, marker_size:float=8
)->go.Figure:

Create an interactive aggregated class chart with plotly.

Args: df: DataFrame from extract_categorical aggregates: Dict mapping aggregate name to list of component class names. title: Chart title colors: Optional dict mapping class/aggregate names to hex colors layer: Optional CategoricalLayer to extract colors from palette show_components: If True, show component classes as dashed lines vlines: Optional dict mapping years to labels for vertical reference lines. Example: {2012: ‘Restoration Start’} vline_color: Color for vertical lines (default gray) height: Chart height in pixels width: Chart width in pixels (None for auto) line_width: Width of lines marker_size: Size of markers

Returns: Plotly Figure object

Example Usage

Let’s demonstrate the charts with real data from the DEFREG dataset.

# Initialize Earth Engine
import ee
ee.Authenticate()
ee.Initialize(project='hs-brazilreforestation')

/Users/alice/.local/share/mamba/envs/gee-polygons/lib/python3.10/site-packages/google/api_core/_python_version_support.py:275: FutureWarning: You are using a Python version (3.10.19) which Google will stop supporting in new releases of google.api_core once it reaches its end of life (2026-10-04). Please upgrade to the latest Python version, or at least Python 3.11, to continue receiving updates for google.api_core past that date.
  warnings.warn(message, FutureWarning)

# Load a site and extract data
from gee_polygons.site import load_sites
from gee_polygons.datasets.mapbiomas import MAPBIOMAS_DEFREG

sites = load_sites('../data/restoration_sites_subset.geojson')
site = sites[8]
print(site)

# Extract DEFREG data for multiple years
df = site.extract_categorical(MAPBIOMAS_DEFREG, years=range(2010, 2017))
df.head(10)

Site(id=9368, start_year=2012)

	site_id	year	class_value	count	area_ha	class_name
0	9368	2010	1	149.090196	13.418118	Anthropic
1	9368	2010	2	0.462745	0.041647	Primary Vegetation
2	9368	2010	3	4.501961	0.405176	Secondary Vegetation
3	9368	2010	5	2.352941	0.211765	Secondary Veg Regrowth
4	9368	2011	1	147.211765	13.249059	Anthropic
5	9368	2011	2	0.462745	0.041647	Primary Vegetation
6	9368	2011	3	6.854902	0.616941	Secondary Vegetation
7	9368	2011	5	1.878431	0.169059	Secondary Veg Regrowth
8	9368	2012	1	147.211765	13.249059	Anthropic
9	9368	2012	2	0.462745	0.041647	Primary Vegetation

Static Charts (Matplotlib)

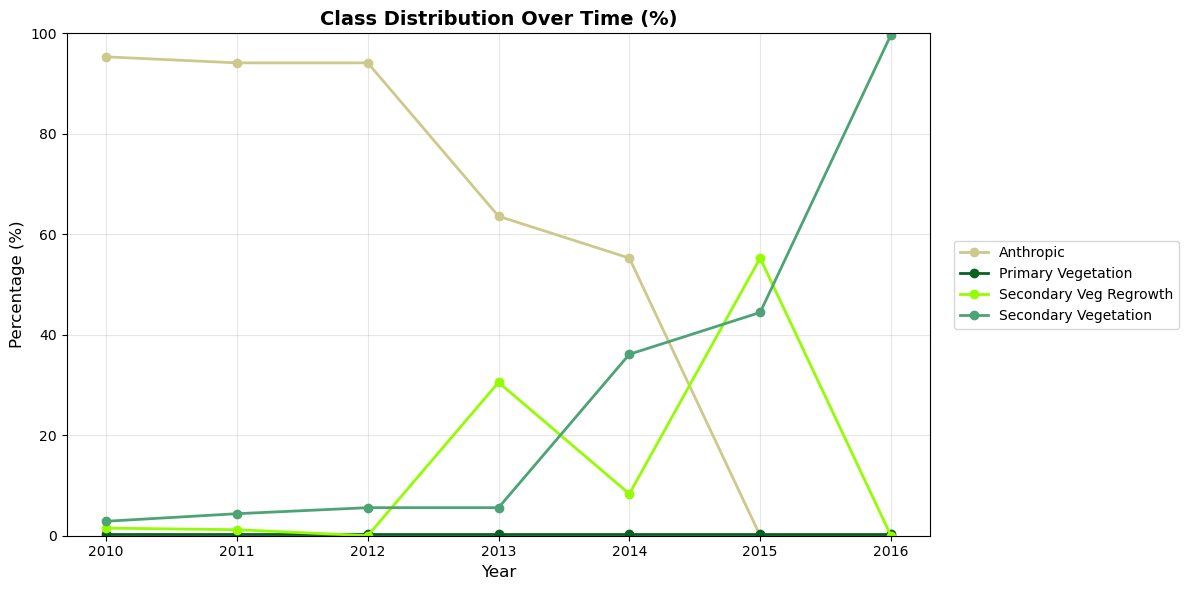

# Line chart: Class distribution over time (%)
# Pass the layer to automatically use MapBiomas DEFREG colors
fig, ax = plot_class_distribution(df, layer=MAPBIOMAS_DEFREG)
plt.show()

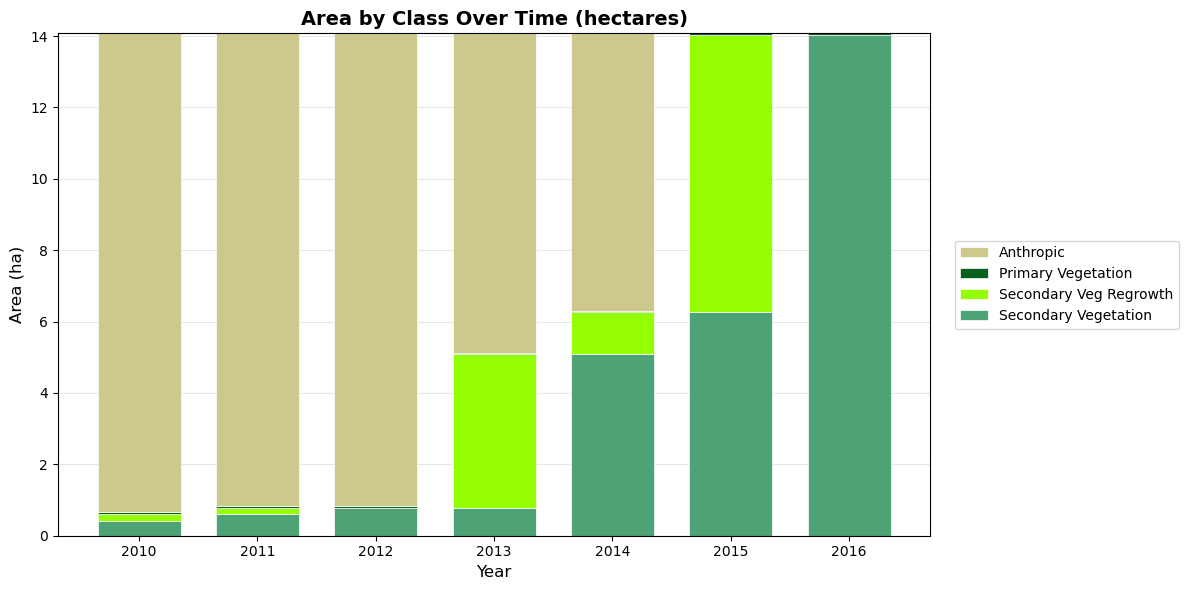

# Stacked bar chart: Area by class over time
fig, ax = plot_class_area_stacked(df, layer=MAPBIOMAS_DEFREG)
plt.show()

Interactive Charts (Plotly)

# Interactive line chart
fig = plot_class_distribution_interactive(df, layer=MAPBIOMAS_DEFREG)
fig.show()

Unable to display output for mime type(s): application/vnd.plotly.v1+json

# Interactive stacked bar chart
fig = plot_class_area_stacked_interactive(df, layer=MAPBIOMAS_DEFREG)
fig.show()

Unable to display output for mime type(s): application/vnd.plotly.v1+json

Using the Convenience Function

# Quick way to generate any chart type
# The layer parameter provides automatic coloring
plot_extraction(df, chart_type='distribution', interactive=True, layer=MAPBIOMAS_DEFREG)

Unable to display output for mime type(s): application/vnd.plotly.v1+json

Aggregated Charts

Combine multiple classes into a single metric while showing components:

# Define aggregates: which classes combine into which totals
aggregates = {
    'Total Restoration': ['Secondary Vegetation', 'Secondary Veg Regrowth']
}

# Custom colors: green shades for the restoration theme
restoration_colors = {
    'Total Restoration': '#2d6a4f',      # dark green for total
    'Secondary Vegetation': '#52b788',   # medium green
    'Secondary Veg Regrowth': '#95d5b2', # light green
}

# Mark important events with vertical lines
# (site.start_year is 2012 for this site)
events = {
    2012: 'Restoration Start'
}

fig, ax = plot_aggregated(
    df,
    aggregates=aggregates,
    colors=restoration_colors,
    vlines=events,
    title='Restoration Progress'
)
plt.show()

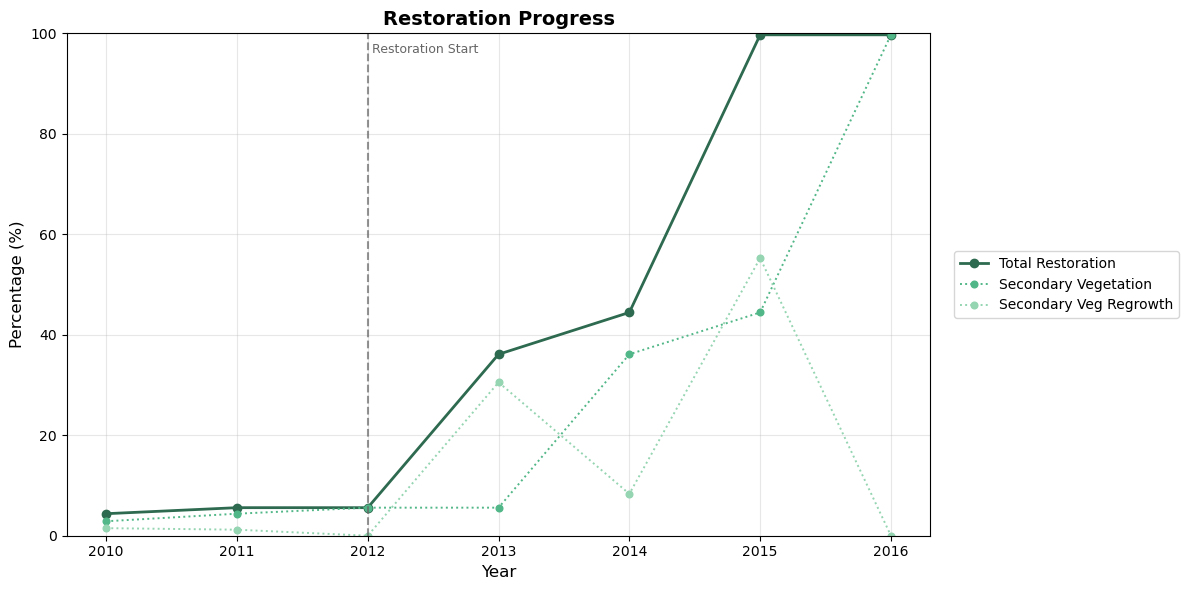

# Interactive version with vertical line
fig = plot_aggregated_interactive(
    df,
    aggregates=aggregates,
    colors=restoration_colors,
    vlines=events,
    title='Restoration Progress'
)
fig.show()

Unable to display output for mime type(s): application/vnd.plotly.v1+json
